Introduction
Imagine you need to create a vertical or inclined passage through solid rock—a ventilation shaft for a deep mine, an ore pass, or a tunnel connection for a hydroelectric project. Traditional methods like drilling and blasting are slow, dangerous, and disruptive. Enter the raise boring machine (RBM) —a mechanical marvel that excavates circular shafts between two underground levels without a single stick of dynamite. Also known as a raise borer, raise drill, or raise boring rig, this equipment has revolutionized underground construction since its development in the 1960s. In this article, you will learn exactly how this remarkable machine works, what it’s made of, where it’s used, and why it has become the preferred choice for shaft excavation worldwide.
How Does a Raise Boring Machine Work?
To truly understand what a raise boring machine is, you need to grasp its operating principle. At its core, the raise boring process is a two-stage mechanical excavation method that transforms a small guidance hole into a large-diameter shaft.
Stage One: Pilot Hole Drilling
The process begins on the upper level of the two levels you intend to connect. The raise boring machine is set up on a carefully prepared concrete pad and secured with rock bolts to ensure absolute stability. From this position, the machine drills a small-diameter pilot hole downward toward the lower level.
This pilot hole typically ranges between 230 and 350 millimeters in diameter—just large enough to accommodate the drill string. As the pilot bit advances, rock cuttings are flushed out of the hole using air or water pumped through the center of the drill pipes, which carries the debris back up through the annular space around the pipe. The pilot hole serves as both a guide path and a drainage channel for the subsequent reaming stage.
Stage Two: Back Reaming

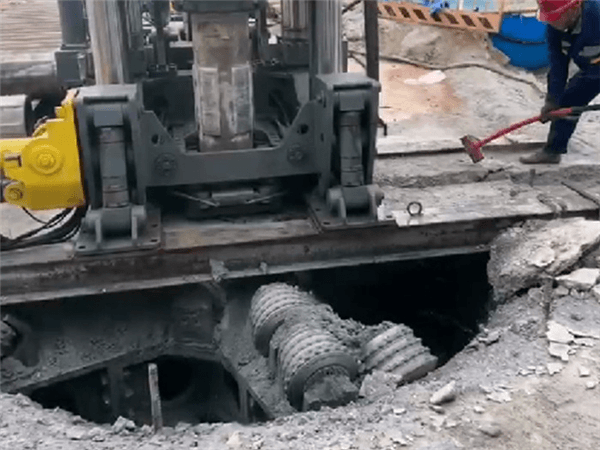

Once the pilot hole breaks through into the lower level, the real magic begins. The pilot bit is removed from the drill string, and a reamer head—equipped with heavy-duty roller cutters—is attached at the bottom end. The reamer head is then pulled upward while rotating, enlarging the pilot hole to the final required diameter.
This is why the method is sometimes called up-reaming or back reaming. During this phase, the rock cuttings fall by gravity to the lower level, where they can be easily removed using conventional mucking equipment. The reamer can be pulled through in a single pass or in multiple stages depending on the final diameter required.
The Cutting Mechanism
You might wonder how the reamer actually cuts through rock. The answer lies in a method called “pressure flaking” —the same principle used by hard rock tunnel boring machines. The reamer head is fitted with roller cutters that have tungsten carbide buttons arranged around their periphery. As the reamer rotates and thrust is applied, these buttons locally crush the rock as they pass by. The rock between adjacent crushed zones then “pops” out in tensile failure—a remarkably efficient process.
Most of the rock is removed through this tensile fracturing mode, producing chips rather than energy-intensive crushed rock dust. The spacing between button rows is carefully engineered to match the cutting characteristics of the specific rock being excavated.
Variations on the Method
It’s worth noting that raise boring isn’t a one-size-fits-all technique. You’ll encounter several variations:
– Conventional Raise Boring: The standard method described above, requiring access at both ends.
– Down-reaming: The reamer is pushed downward rather than pulled upward, with the drill string in compression.
– Blind Boring (or Boxhole Boring): Used when there isn’t enough space on the upper level—the machine is set up on the lower level and drills upward.
Each variation serves specific site conditions, but the fundamental two-stage principle remains the same.
Main Components of a Raise Boring Machine
A raise boring machine is a sophisticated piece of equipment comprising several interconnected systems. Understanding these components will give you a clearer picture of how the entire machine functions as a cohesive unit.
1. The Drill Rig (Main Frame)
The drill rig forms the structural backbone of the raise boring machine. Mounted on the upper level, it consists of a robust derrick or mast that supports the entire drilling operation. The rig includes:
– A base plate secured to a concrete foundation with rock bolts
– A telescopic or luffing mechanism for adjusting the drilling angle
– Top bracing mechanisms to counteract the immense forces generated during operation
2. The Power Head and Drive System
The power head is the heart of the machine, providing the rotational force and thrust needed to cut through rock. It typically includes:
– Hydraulic motors that drive rotation
– Main thrust bearings capable of withstanding enormous loads
– A hollow shaft design that protects the drill string during high-torque operations
Modern raise boring machines can apply tension forces of approximately 1,600 tonnes and torques of about 1,100 kNm.
3. The Drill String
The drill string is the assembly of connected drill pipes that transmit rotational force and thrust from the power head to the cutting tools. Key features include:
– Screwed connections between pipe sections
– Stabilizers positioned along the string to minimize oscillation and bending stresses during pilot drilling
– Special-shaped joints for specific applications
4. The Reamer Head
The reamer head (or raise head) is the business end of the machine during the reaming stage. It consists of:
– A main body that mounts multiple cutter saddles
– Roller cutters mounted in these saddles
– Tungsten carbide insert buttons on each cutter for rock fragmentation
The reamer head can be designed for single-stage or multi-stage reaming, with diameters ranging up to 8 meters.
5. Auxiliary Systems
Several supporting systems are essential for smooth operation:
– Circulation system: Removes cuttings during pilot drilling using air or water flushing
– Cooling system: Cools high-temperature hydraulic oil and the drill bit
– Pipe handling system: Automates the addition and removal of drill pipes
– Control system: Monitors and adjusts operational parameters
– Power supply: Provides energy to all systems
6. Ancillary Equipment
You’ll also find various accessories that support the main machine:
– Pilot bits (typically tricone bits) for the initial drilling phase
– Non-rotating stabilizers for maintaining hole alignment
– Slag collection devices for managing cuttings
Applications of Raise Boring Machines
Raise boring machines have found their way into a remarkably diverse range of applications across mining, civil engineering, and infrastructure projects. Let’s explore where you’re most likely to encounter this technology.
Mining Applications
The mining industry remains the primary domain for raise boring machines. You’ll find RBMs creating:
– Ventilation shafts: The smooth walls and consistent diameter of bored raises provide excellent airflow characteristics, making them ideal for mine ventilation
– Ore passes: Vertical or inclined passages for transporting ore from upper to lower levels
– Access shafts: Safe entry and exit points for personnel and equipment
– Escape ways: Emergency egress routes in case of accidents
– Fill passes: Channels for transporting backfill material
– Service shafts: For utilities, cables, and piping
The technology is particularly valuable in deep, hard rock mines, where traditional methods become increasingly dangerous and impractical.
Civil Engineering and Infrastructure
Beyond mining, raise boring machines are increasingly used in civil projects:
– Hydroelectric projects: Constructing surge shafts, penstock lines, and headrace tunnels
– Transportation tunnels: Creating ventilation shafts and exit passageways for highway, railway, and subway tunnels
– Water infrastructure: Building water conduits and cable shafts for hydropower and pumped-storage stations
– Nuclear waste storage: Excavating underground repositories
– Military installations: Constructing secure underground facilities
Impressive Scale
The scale of some raise boring projects is truly remarkable. Today’s machines can bore diameters exceeding 7 meters and depths of more than 1,200 meters. Some advanced systems are capable of reaching depths up to 2,000 meters with diameters of 8 meters. In South Africa, raise boring was used to create 7.1-meter diameter shafts for major mining operations. China’s first domestically developed 7-meter-class ultra-large diameter raise boring machine, with a maximum designed excavation diameter of 8 meters, went into operation in 2025.
Remote and Challenging Conditions
Modern raise boring machines are even equipped with remote intelligent control systems based on 5G communication technology, enabling autonomous and efficient continuous drilling. These systems can maintain high-precision operations even in complex rock formations with fractured zones. Average pilot hole footage reaches 1.75 m/h, with reaming footage averaging 1.375 m/h—impressive figures that demonstrate the technology’s efficiency.
The method is suitable for excavating raises higher than 60 meters with diameters over 2.0 meters. It effectively handles rock with a nominal UCS range of 50–350 MPa.
Advantages of Raise Boring Machines
Why would you choose a raise boring machine over traditional methods? The advantages are compelling and numerous.
1. Unmatched Safety
Safety is perhaps the single most important advantage of raise boring. Traditional drill-and-blast methods require personnel to work inside the shaft, exposed to risks of rock falls, misfires, and harmful gases. With raise boring, no personnel need to access the shaft during the boring process. Raises can be safely drilled in ground that would be extremely hazardous—if not impossible—to drive by conventional methods. The elimination of explosives also removes the inherent dangers of handling and storing blasting materials.
2. Superior Speed and Productivity
A hole drilled by a raise boring machine can generally be completed in a fraction of the time required for conventional methods. Studies have shown that the raise boring method can reduce construction time by approximately 20% compared to traditional drilling and blasting. The continuous, mechanized nature of the process eliminates the stop-start cycle of drilling, charging, blasting, ventilating, and mucking that characterizes conventional shaft excavation.
3. Minimal Rock Disturbance
Unlike blasting, which violently fractures and disturbs the surrounding rock mass, raise boring causes very minimal disturbance to adjacent rock. The rock is removed through controlled mechanical cutting rather than explosive shock waves. This means:
– Better shaft wall stability: The finished shaft has smooth, consistent walls that often do not require rock bolting or lining
– Superior airflow characteristics: The smooth finish means minimal extra friction when used for air or water flow
– Reduced risk of collapse: The surrounding rock remains in its equilibrium state
4. Reduced Labor Requirements
Raise boring requires a significantly smaller excavation crew compared to conventional methods. The machine does the heavy work, and skilled raise drill operators replace large teams of conventional miners. This not only reduces labor costs but also addresses the challenge of finding skilled miners—a perennial issue in the industry.
5. Cost-Effectiveness
While raise boring machines have higher capital costs, they are normally financially competitive on a cost-per-meter basis. When you factor in:
– Reduced labor costs
– Faster project completion
– Less need for shaft lining and ground support
– Lower material handling costs
The bottom-line reduction in cost becomes evident. Moreover, as labor and material costs continue to escalate, the economic case for raise boring becomes increasingly compelling.
6. Flexibility and Precision
Raise boring machines offer remarkable flexibility in terms of:
– Angles and gradients: From horizontal to vertical
– Diameters: Up to approximately 8 meters
– Accuracy: Minimal deviation along the shaft length
The finished shaft has a consistent diameter over its full length—a level of precision that is difficult to achieve with blasting.
7. Environmental Benefits
Raise boring is also more environmentally friendly:
– Reduced noise and vibration impacts on surrounding areas
– Less dust compared to blasting operations
– No explosive residues or toxic fumes
8. Improved Hole Quality
The smooth walls of a bored raise make it more adaptable for ventilation and rock passes. The hole is more stable than a drilled-and-blasted opening and has better airflow. This quality is particularly valuable for ventilation shafts, where airflow efficiency directly impacts mine safety and productivity.
Conclusion
In summary, a raise boring machine—whether you call it a raise borer, raise drill, raise boring rig, or simply an RBM—is a mechanical shaft-excavation system that creates circular passages between underground levels through a two-stage process of pilot drilling and back reaming. Its roller cutters with tungsten carbide inserts efficiently fracture rock through the pressure flaking method. From mining ventilation shafts to hydroelectric penstocks, from nuclear waste repositories to transportation tunnels, RBMs have proven themselves indispensable across industries. The advantages are undeniable: superior safety, faster completion, reduced labor, minimal rock disturbance, cost-effectiveness, and exceptional hole quality. As technology continues to advance—with remote control, 5G connectivity, and ever-larger diameters becoming reality—the raise boring machine will undoubtedly remain at the forefront of underground construction for decades to come. Whether you’re a mining engineer, a civil contractor, or simply someone curious about how we build beneath the earth’s surface, understanding the raise boring machine is essential—it’s not just a piece of equipment; it’s a testament to human ingenuity in conquering the challenges of underground excavation.
